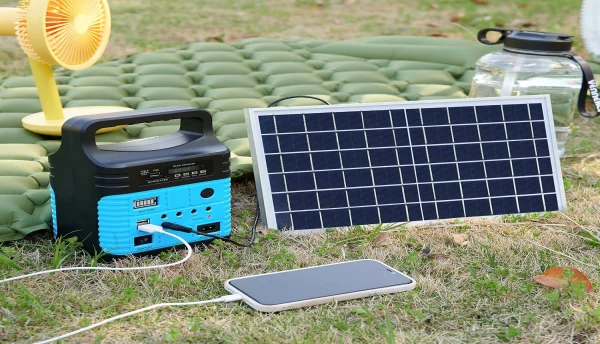

A Solar Panel with DC Plug is one of the most convenient solutions for powering small electronic devices, IoT systems, battery charging applications, and DIY solar projects. Unlike traditional photovoltaic modules that require additional wiring, soldering, or terminal connections, DC plug solar panels provide a simple plug-and-play solution.
With growing demand for portable energy and off-grid applications, compact solar modules with DC connectors are becoming increasingly popular among engineers, hobbyists, outdoor users, and renewable energy developers.
This guide explains how DC plug solar panels work, their advantages, applications, connector types, and how to choose the right model for your project.
What Is a Solar Panel with DC Plug?
A Solar Panel with DC Plug is a compact photovoltaic module equipped with a pre-installed DC barrel connector. The connector allows direct connection with DC-powered equipment, reducing installation complexity.
Compared with traditional solar panels requiring custom wiring, these modules provide:
Plug-and-play installation
Easy connection with DC devices
Reduced wiring requirements
Better portability
Suitable solutions for DIY projects
Most models use common DC barrel connectors, including:
5.5×2.1mm DC Solar Panel
5.5×2.5mm DC connector
3.5×1.35mm micro DC connector
Among these options, the Mini Solar Panel DC5521 connector (5.5mm × 2.1mm) is one of the most widely used standards for 12V electronics, Arduino projects, LED strips, and CCTV systems.
Understanding Solar Panel DC Connector Types
5.5×2.1mm DC Solar Panel Connector
The 5.5×2.1mm barrel connector is currently the most common configuration for small solar applications.
A 5.5×2.1mm DC Solar Panel is commonly used for:
12V electronics
Wireless routers
CCTV cameras
LED lighting systems
DIY solar projects
It provides reliable connection and supports moderate current levels for small power systems.
Solar Panel with Male DC Plug and Female DC Jack
A complete solar module normally includes either a male plug output or a female jack connection depending on application requirements.
Solar Panel with Male DC Plug is designed for direct connection into compatible devices or controllers.
Solar Panel with Female DC Jack allows flexible cable connection and easier customization.
Selecting the correct connector type ensures compatibility and prevents installation problems.
Advantages of Solar Panel with DC Plug
Easy Plug-and-Play Installation
One major advantage of a Solar Panel with DC Jack is installation simplicity. Users can connect the panel directly to compatible devices without soldering tools or complicated wiring. This makes DC plug panels ideal for:
Educational projects
Makers
IoT developers
Portable solar systems
Reliable DC Power Output
A DC Output Mini Solar Panel provides stable direct current output suitable for low-power devices. Compared with USB-based solutions, DC barrel connectors usually offer better compatibility with 6V, 9V, and 12V applications.
Strong Outdoor Compatibility
Many DC plug solar modules feature waterproof connectors and protective coatings. For outdoor applications, users should select products with:
Weather-resistant connectors
UV-resistant materials
Durable encapsulation
Reverse current protection
Applications of DC Plug Solar Panels
IoT and Smart Sensor Systems
A 5V Solar Panel with DC Plug is widely used for IoT applications, including:
Temperature monitoring systems
Weather stations
Remote sensors
Smart agriculture devices
The compact size allows installation in locations where traditional power sources are unavailable.
12V Battery Charging and Maintenance
A 12V Solar Panel with DC Plug is commonly used for maintaining:
12V Battery Charging and Maintenance
Car batteries
Motorcycle batteries
Boat batteries
Backup battery systems
A small solar charger helps prevent battery discharge during long storage periods.For safe charging, users should connect the panel through a suitable solar charge controller to prevent overcharging.
LED Lighting Applications
A Solar Charger Panel DC Plug can provide power for:
Outdoor LED strips
Garden lighting
Camping lights
Emergency lighting
Because LED systems require relatively low power, mini solar panels offer an efficient renewable energy solution.
Arduino and DIY Electronics
Maker communities often use DC plug solar modules because they can easily integrate with development boards. Applications include:
Arduino projects
Raspberry Pi systems
Educational experiments
Prototype testing
How to Choose the Right Solar Panel with DC Plug?
Choosing the right Solar Panel with DC Plug depends on three key factors: power output, voltage requirement, and application scenario. Select the appropriate panel wattage based on your device power consumption and charging needs.
Panel Power | Output Voltage | Recommended Applications |
|---|---|---|
0.5W - 2W | 5V - 6V | LED lights, sensors, small IoT devices |
3W - 5W | 6V - 9V | Arduino, ESP8266, battery maintenance |
6W - 10W | 9V - 12V | Raspberry Pi, CCTV cameras, 12V LED strips |
12W - 20W | 12V - 18V | Multiple devices, battery charging, small pumps |
Connector Selection Guide
Besides power and voltage, the DC connector type should also match your device input port.
DC Connector Type | Size | Common Applications |
|---|---|---|
Mini Solar Panel DC5521 | 5.5×2.1mm | Most 12V electronics, CCTV, LED lighting |
DC Barrel Plug Solar Panel | 5.5×2.5mm | Larger DC devices and customized systems |
Solar Panel with Male DC Plug | Standard DC plug output | Direct device connection |
Solar Panel with Female DC Jack | DC socket connection | Flexible cable extension and DIY projects |
Quick Selection Tips
Choose 5V Solar Panel with DC Plug for low-power sensors and small electronics.
Choose 6V Solar Panel with DC Plug for battery maintenance and compact solar projects.
Choose 12V Solar Panel with DC Plug for CCTV, LED lighting, and 12V battery applications.
Select a higher wattage panel when your device requires longer operation time or faster charging.
Installation Tips for Solar Panel with DC Connector
Check DC Plug Polarity
Most barrel connectors use center-positive polarity. However, some devices use center-negative configurations. Incorrect polarity may damage electronic components. Always verify polarity before connection.
Use Reverse Current Protection
At night, solar panels can consume stored energy. Using a blocking diode or controller with reverse protection prevents battery discharge.
Consider Cable Distance
For longer cable runs:
Use thicker cables
Avoid excessive extension length
Maintain correct connector size
This reduces voltage loss and improves system efficiency.
Common Questions About Solar Panel with DC Plug
Can I connect a solar panel directly to a battery?
Yes, but a charge controller is recommended, especially for lithium or lead-acid batteries, to prevent overcharging.
What DC plug size is most common?
The most common size is the 5.5×2.1mm DC Solar Panel connector, also known as DC5521.
Are DC plug solar panels waterproof?
The solar module is usually weather-resistant, but the connector should also have waterproof protection for outdoor installations.
Conclusion
A Solar Panel with DC Plug provides a simple, reliable, and flexible way to integrate solar energy into small electronic applications. From IoT sensors and Arduino projects to battery charging and outdoor lighting, DC plug solar modules eliminate complicated wiring and make solar power easier to access.
Whether you need a 5V Solar Panel with DC Plug, 6V Solar Panel with DC Plug, or 12V Solar Panel with DC Plug, selecting the correct voltage, connector type, and power rating is the key to achieving reliable performance.
As a professional Mini Solar Panel Manufacturer, Hinergy provides customized solar modules with different power outputs, connector options, and application solutions for global customers.
