Can Solar Street Lights Be Installed on Existing Poles?
A solar street light retrofit can involve retaining the pole and replacing the lighting package, or retaining selected components within a redesigned system. Off-grid replacement, solar-assisted operation and backup power have different equipment and electrical requirements. For commercial solar street lights, state which arrangement the project needs before comparing products.
For existing street light poles, use three decisions: proceed with an agreed configuration when the evidence supports reuse; obtain further assessment when records are incomplete; or revise the deployment when the existing asset or location cannot meet the task. The following table helps organize that decision.
Check | Evidence Needed | Next Action |
|---|---|---|
Ownership and access | Pole owner, attachment permission, site access and operating restrictions | Obtain authorization for the proposed work. |
Pole and foundation | Asset records, condition survey and review of proposed loading | Confirm reuse or identify further assessment and remedial work. |
Mounting interface | Measurements at the attachment point and proposed bracket drawings | Confirm the complete mounting arrangement. |
Sunlight and lighting | Shading survey, existing layout, lighting targets and operating schedule | Verify solar supply and road lighting separately. |
Existing electrical system | Circuit identification, other connected equipment and proposed changes | Agree the electrical scope with the responsible parties. |
Survey the Existing Pole and Foundation Before Selecting Hardware
Collect pole and foundation records
Give each pole an asset number. Collect available drawings, material, height, arm arrangement, installation history and foundation records. Photograph the whole pole, base, anchor area, access door, attachment point and surrounding obstructions. Record visible corrosion, damage, leaning or previous modifications for assessment; photographs alone cannot establish structural capacity.
For an industrial park owner, this creates an asset-by-asset work list. For a contractor, it identifies where access, records or specialist inspection must be arranged before installation. Where documentation is missing, agree an assessment route rather than assuming that adjacent poles are identical.
Review added weight, wind loading and condition
Provide the reviewer with component weights, mounting heights, offsets and wind-loading information for the proposed panel, luminaire, battery enclosure and brackets, together with retained accessories. Pole selection guidance considers both equipment weight and effective projected area (EPA) under site-specific design conditions.[1] An existing pole's diameter alone is insufficient evidence of suitability.
Include the foundation, base plate and anchorage in the review where applicable. Their suitability depends on the proposed assembly and existing condition; an adapter does not establish foundation capacity.[2] Confirm applicable local design requirements with the responsible professional before accepting the arrangement.
Match the Solar Retrofit Kit and Mounting Bracket
Check the actual mounting interface
A solar street light retrofit kit should be defined by its component list and drawings. Ask whether the quotation includes the solar panel, LED luminaire, battery, controller, mounting bracket, connectors and required adapters. Check the solar street light mounting bracket against the existing attachment; “pole-mounted” alone does not confirm fit. Use the solar street light specification checklist to request the corresponding product documents.
Interface | Measurements and Drawings | Model Confirmation |
|---|---|---|
Existing arm or spigot | Outside diameter, usable straight length, insertion depth and arm angle | Confirm sleeve fit, locking method and permitted adjustment. |
Pole clamp or band mount | Cross-section at mounting height, taper, available contact length and obstructions | Confirm bracket geometry, contact arrangement and pole material compatibility. |
Separate panel or battery mount | Proposed position, clearance, cable route and service access | Confirm component placement and the complete mounting drawing. |
Single-head or double-head assembly | Number of retained and new heads, arm reach and attachment locations | Include the actual arrangement in layout and structural reviews. |

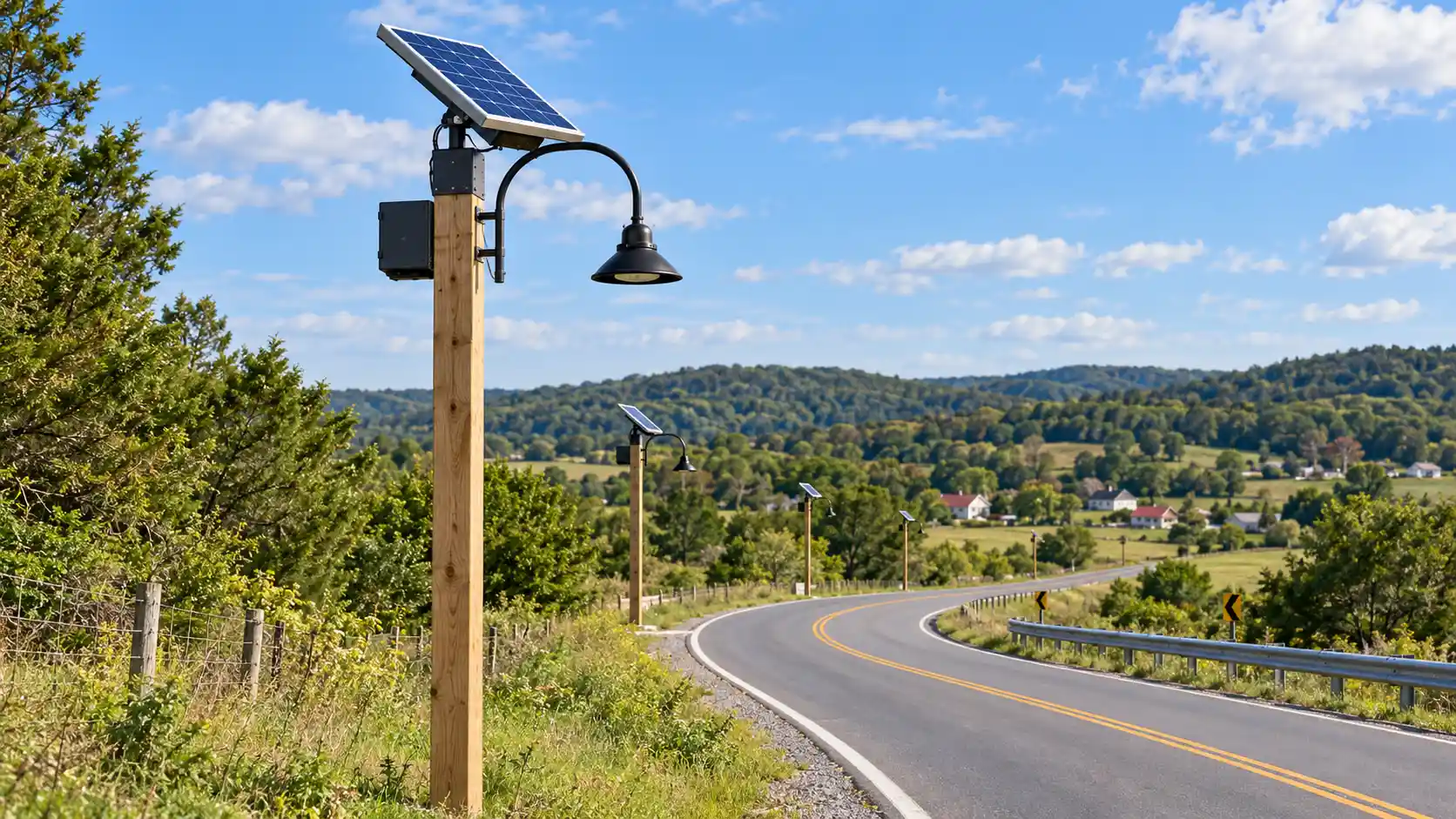

Specify whether measurements are in millimetres or inches. A pole's nominal base diameter may differ substantially from its diameter at the clamp. Round, square, tapered, concrete and composite poles require appropriate arrangements; do not assume one solar street light pole clamp fits them all.
Obtain model-specific fastener specifications, tightening instructions and corrosion-protection details. Drilling, welding or modifying an existing pole requires approval for that pole and installation. Treat a bracket's dimensional fit and the assembly's structural suitability as separate confirmations.
Compare integrated and separate-component layouts
An integrated solar street light may reduce separately mounted components, but its panel position and service access still need checking. An all-in-two or split design may allow independent panel positioning while introducing additional attachments and cable routes. Neither layout guarantees easier installation on an existing pole.
Use the drawings to compare all-in-one, all-in-two and split designs, then shortlist configurations against the measured interface. Distributors handling multiple sites should keep an approved compatibility record for each pole type and product version.
Check Sunlight and Lighting Performance on the Existing Layout
Verify illumination at the fixed pole positions
Record road width, pole height, spacing, setback, arm outreach and nearby buildings. Request photometric analysis using the proposed luminaire's relevant IES or LDT file, output setting and tilt. Review the specified illumination or luminance, uniformity and glare criteria. Replacing an old lamp with a similar LED wattage does not establish equivalent road lighting.
If the existing spacing leaves unacceptable gaps, investigate optics, mounting position or layout changes before ordering. The guide to pole height, spacing and photometric requirements explains the inputs needed for this assessment.
Verify charging at the proposed panel position
Assess solar panel orientation, tilt and seasonal shading at each proposed location. A clear road does not guarantee an unshaded panel above nearby trees or buildings. PVGIS provides solar-resource and off-grid modelling tools, but its terrain-based horizon does not automatically capture nearby obstructions; a local shading assessment remains necessary.[3]
Check the energy balance against the agreed dimming program, night length, temperature assumptions, losses and reserve requirement. Ask how charging recovers after low-sun periods. A larger battery cannot by itself correct persistent undercharging. Confirm whether the chosen fixture allows the panel and light distribution to be aimed independently.
Decide What Happens to the Existing Light and Wiring
Before planning an AC street light to solar conversion, establish whether the existing LED luminaire will be replaced or retained. Retention requires confirmation of the driver input, voltage/current requirements, controls, protection and complete power-system compatibility. An AC-input luminaire cannot simply be assumed to operate directly from a DC battery.
Identify the original supply, shared circuits and other equipment, including CCTV or communications devices. State which wiring will remain in service, be removed or be decommissioned, and who owns each task. Solar-assisted or grid-connected arrangements require their own equipment and applicable approvals.
Have appropriately qualified personnel plan isolation and verification under the rules applicable to the site and work. U.S. OSHA 1910.333 provides a relevant electrical work-practice reference within its scope, including qualified verification of de-energization.[4] Follow the approved electrical design and equipment manuals; do not apply one generic connection sequence to every controller.
Plan Installation, Commissioning and Handover
Before work
Approve the equipment list, mounting drawings, electrical scope and work plan. Contractors should confirm lifting access, traffic or pedestrian arrangements, outage windows and responsibilities for removed equipment. For repeat installations, an agreed pilot can resolve interface and access issues before wider deployment.
During installation
Follow the approved drawings and model-specific instructions. Check component placement, fasteners, cable routing, connector identification, weather seals and maintenance access. Keep the panel's receiving surface exposed toward the sky and aim the luminaire according to the lighting design; final orientation depends on the site and product adjustment limits.
After installation
Use a solar street light commissioning checklist that records the asset, installed configuration and acceptance evidence. A daytime switch-on is a functional check; it does not establish full-night performance or the specified low-sun reserve.
Check | Evidence to Record | Acceptance Basis |
|---|---|---|
Mechanical completion | Installed assembly, inspection record and attachment photographs | Approved mounting drawings and equipment instructions. |
Charging and controls | Controller status, operating program and test conditions | Model-specific commissioning procedure and agreed settings. |
Nighttime lighting | Observation times, operating level and specified measurements | Project lighting criteria and agreed verification method. |
Energy performance | Design assumptions, available operating data and outstanding observations | Agreed energy assessment and performance-validation plan. |
Handover | Asset IDs, component versions, manuals, service contacts and open items | Contractual documentation and maintenance responsibilities. |
Record anything not yet verified, who will verify it and when. Give the owner access instructions and the agreed service plan; the separate guide to solar street light maintenance and battery replacement covers ongoing diagnosis and servicing.
Define the Retrofit Scope Before Requesting a Quote
Reusing suitable poles may reduce new pole supply and some civil work. However, solar lighting retrofit cost can still include surveys, structural assessment, old-luminaire removal, adapters, access equipment, electrical work, foundation repairs and commissioning. Compare these items against the same lighting task and operating schedule.
Engineering procurement teams should request clear inclusions, exclusions and acceptance documents. Distributors should distinguish standard supply from site-specific adapters. Industrial park and road owners should confirm disruption, asset ownership and future service responsibility. For commercial comparisons, review the full solar street light quotation scope.
Information to send with a retrofit enquiry
Information | What to Provide |
|---|---|
Location and ownership | Country, city or coordinates, pole owner and attachment permission status. |
Existing assets | Pole quantities, materials, available drawings, condition records and photographs. |
Mounting dimensions | Actual interface dimensions, arm arrangement, usable mounting length and clearances. |
Lighting task | Road or area dimensions, existing layout, required performance and night program. |
Solar and environment | Shading information, operating temperatures, exposure conditions and reserve requirements. |
Electrical scope | Existing supply, equipment to retain or remove, shared circuits and additional loads. |
Delivery and acceptance | Destination, requested schedule, installation scope and required documents or tests. |
Frequently Asked Questions
Can any existing light pole be converted to solar?
No. A candidate pole needs permission for the attachment and verification of condition, foundation, proposed loading, mounting arrangement, sunlight and lighting performance. If essential evidence is missing, obtain assessment before selecting a retrofit package. Some locations will require a different deployment.
Can I keep the existing LED luminaire and wiring?
Do solar street light retrofits require trenching or new foundations?
Which measurements are needed for a pole clamp or spigot adapter?
Are all-in-one solar street lights always the easiest retrofit option?
